Beacons, Mobile Phones and Two Way Radios
Posted: 12 November 2009 04:23 PM
Jr. Member
RankRank
Total Posts:  48
Joined  2009-10-09

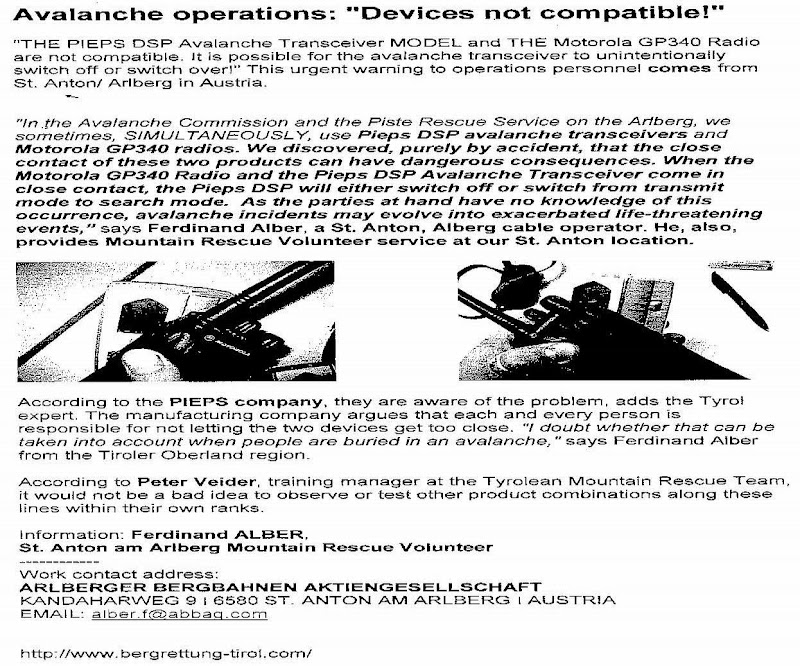

Jonathan Shefftz posted this advisory on Telemark Talk… given we sclepp a lot of electronics into the backcountry (iPhones, iPods, iBeacons etc) what is the latest skiing on searching with avalanche beacons?




Posted: 12 November 2009 04:56 PM   [ # 1 ]
Administrator
RankRankRankRank
Total Posts:  2234
Joined  2003-10-24

Hmmm that’s quite interesting, is it the radio broadcast or the speaker magnet that is causing the problem? I have an ARVA 9000 that uses a magnet and hall or reed switch to actuate the beacon. Obviously a stronger magnet, such as in a speaker, could cause problems. I think the DSP has a reed switch so it seems like the speaker magnet is causing the problem. I guess if you are buried this could be a factor as you have little control where your radio might end up. Something to think about.

Reed switches seem like a flakey design to me, but beacons must be waterproof and this is one way to do it, switch is actuated remotely through the case by a small magnet in the clip.



Posted: 12 November 2009 08:08 PM   [ # 2 ]
Newbie
Rank
Total Posts:  6
Joined  2009-11-12

It’s extremely unlikely to be the magnet. Reed-switches are normally activated when the triggering magnet is within 1- 2 mm and since magnetic flux decays on a logarithmic scale, another magnet would have to be both very close ( ferrite speaker magnets are rather weak ) and well aligned along the axis of the poles to have an effect.
